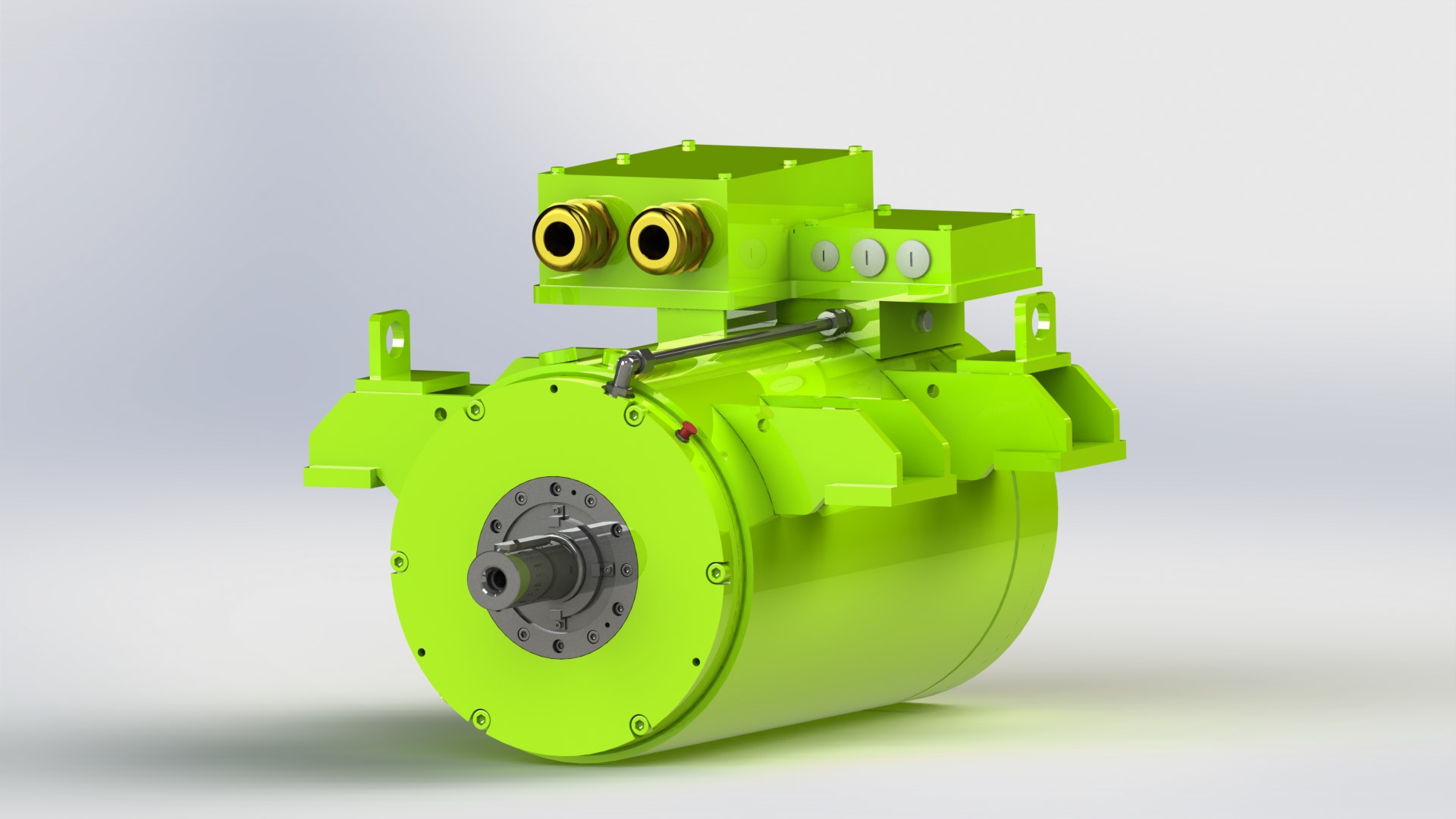

ceds duradrive servomotoren img small 1

Servo Motors

high-precision and dynamic

Both direct current, synchronous and asynchronous motors can be designed as servo motors. Together with a servo amplifier (also servo controller) they then form the so-called servo drive. With this drive, torque, speed or position can be precisely controlled. For this purpose, a rotary encoder, e.g. an incremental encoder, is always used to measure the current position of the rotor.

CEDS drives are individually tailored to our customers' needs, adapted to customer specifications, legal requirements and climatic operating conditions. Synchronous servomotors, energy-saving like synchronous motors and in addition to the controllable speed, have other convincing advantages: high power density, low mass moment of inertia and the possibility of very compact designs. All in all, this results in a motor for highly dynamic applications with very good positioning accuracy characteristics.

CEDS servo motors offer you special features, which are as follows:

  • Very high acceleration capacity
  • Light and compact size
  • Efficiently related to size
  • High efficiency even at low rotation speed
  • High speed stability
  • High power density
  • High power density
  • Very high positioning accuracy
  • Very high rotation speed can be realized
  • Very high dynamics due to low mass inertia
  • Reinforced winding insulation for high dielectric strength and thus better resistance to partial discharge within the winding
  • Quiet movement
  • Low reactive power requirement
  • Synchronous running of several drives even with different loads is possible, as each motor is equipped with its own FI
  • Magnetically lockable by the control of the FU, then no additional brake is necessary

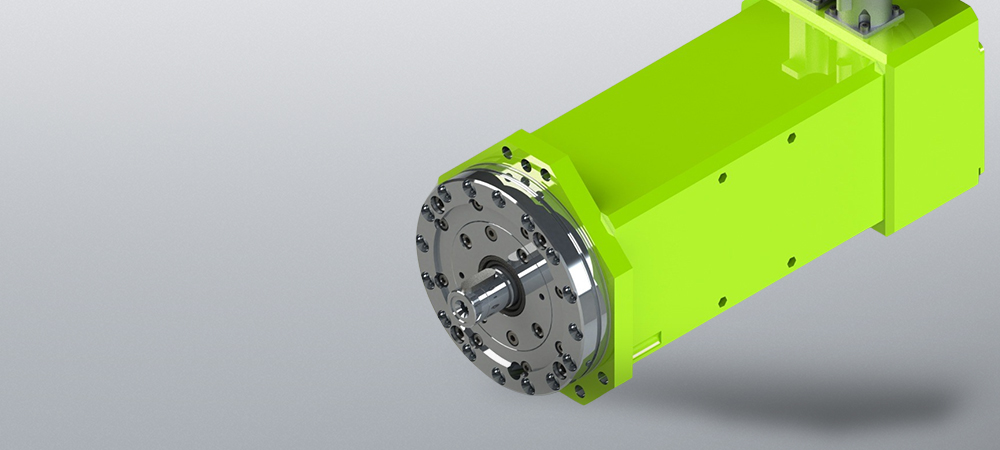

Fields of application

Technical parameters

Parameters Servo Motors
Size IEC standard or larger according to Transnorm
Power (P) 100 W to 1 MW
Speed 48,000 rpm
Turning moment 1 Nm - 10 kNm
Voltage range 12 to 690 V AC
Efficiency up to 97%
Power density high (very compact drives possible)
Magnets NdFeB or SmCo

Precise configuration for your application

high-precision and dynamic
When you choose a drive from CEDS DURADRIVE, you get a "tailor-made suit" - a solution that is perfectly designed and tuned to your needs.
